- Filter Series
- »

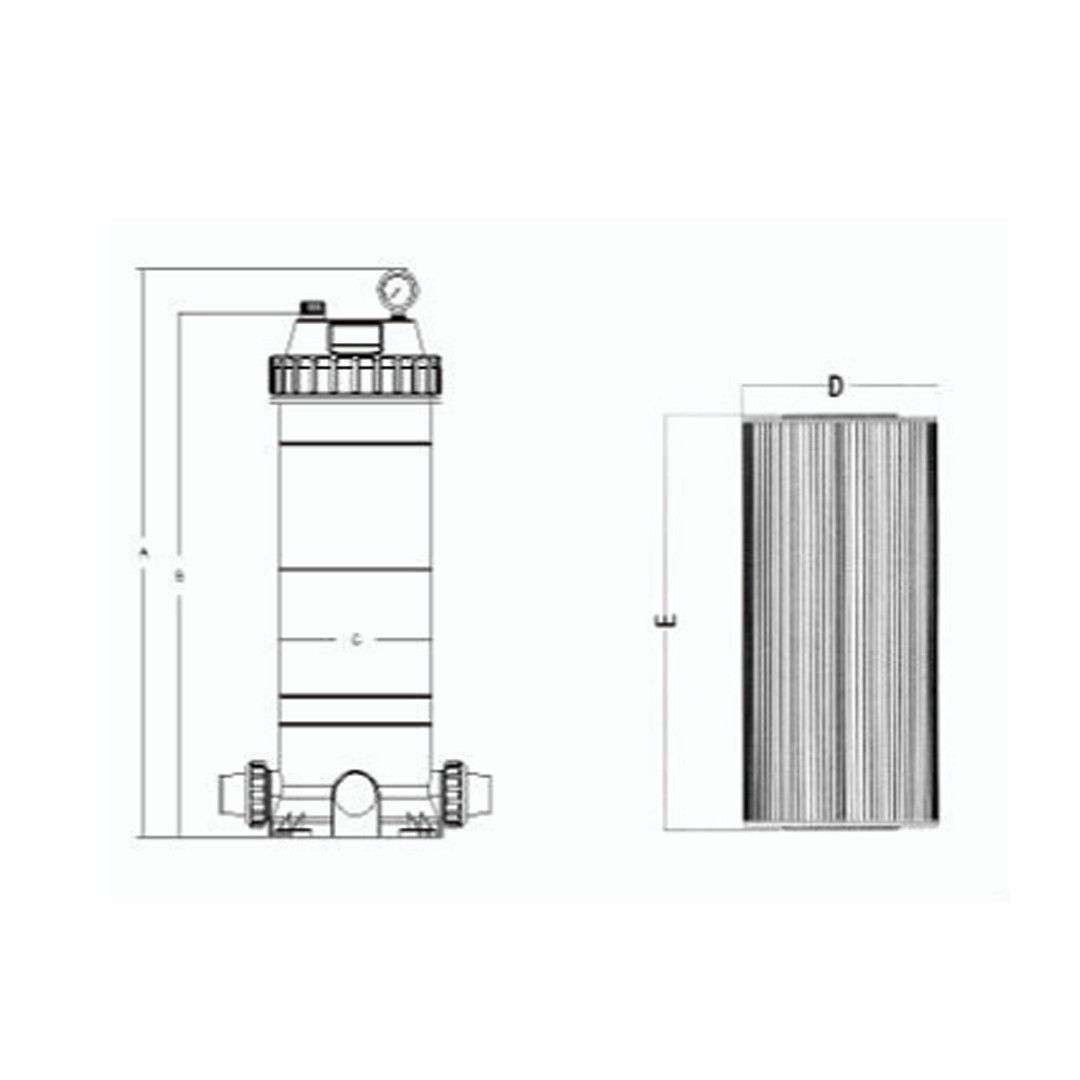

- Cartridge Filter
Cartridge filtration is an effective, trouble-free, and proven method of filtration. Pool water enters the filter and passes through a polyester single-element cartridge. Suspended particles are trapped, and the clean water is returned to the pool. As dirt builds up in the cartridge element, water pressure increases and flow decreases. When the pressure reaches an unacceptable level, the element must be removed and cleaned.
| Paper Cartridge Pool Filters / Cartridge for Water Treatment | |
|---|---|
| Parameter | Specification |
| Maximum Working Pressure | 300 kPa / 50 psi / 3.5 bar |
| Max Flow Rate | 5.5 m³/h – 40.9 m³/h |
| Valve Connection | 1.5 inch (50 mm) / 2 inch (63 mm) |
| Filter Area | 2.25 m² – 16.83 m² |
| Maximum Water Temperature | 40°C (100°F) |
| Model | Description |
|---|---|
| SGC 25 | 25 ft² Cartridge Filter with 1.5" union sets |
| SGC 50 | 50 ft² Cartridge Filter with 1.5" union sets |
| SGC 75 | 75 ft² Cartridge Filter with 1.5" union sets |
| SGC 100 | 100 ft² Cartridge Filter with 2" union sets |
| SGC 150 | 150 ft² Cartridge Filter with 2" union sets |
| SGC 200 | 200 ft² Cartridge Filter with 2" union sets |
